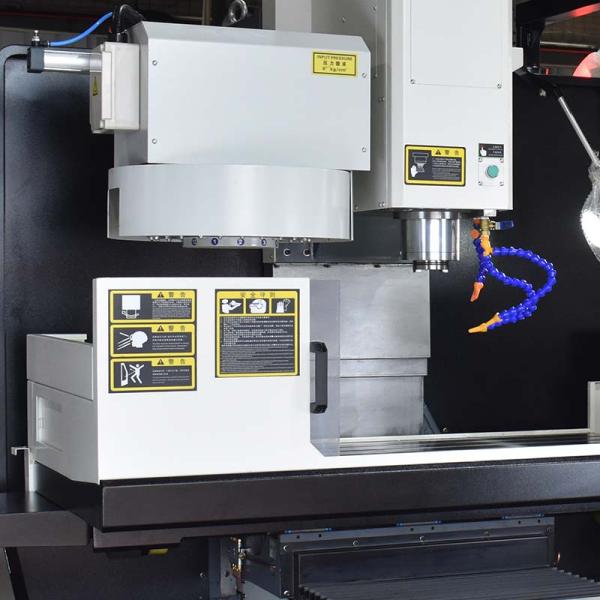

High Positioning Accuracy Vertical CNC Machining Center 900mm Long Work Table
Product Description:
CNC-950GM Vertical Machining Center machine is a numerical control machine with superior cost performance and equipped with a numerical control system.
1. The machine bed, column, saddle, worktable, main spindle box and other main basic parts are made of high quality cast iron.
2. It adopts special casting process to improve the mechanical properties of materials.
3. After annealing treatment and vibration aging, remove stress to ensure good rigidity and damping characteristic when the machine tool is used for cutting.
Product Specification:
| Model No. | CNC-950GM |
| X axis travel | 900mm |
| Y axis travel | 500mm |
| Z axis travel | 500mm |
| Distance from spindle nose to the work table | 120-620mm |
| Distance from spindle center to column guideway | 580mm |
| X rapid feed | 36m/min |
| Y rapid feed | 36m/min |
| Z rapid feed | 24m/min |
| Cutting rapid feed | 8000mm/min |
| The width of the triaxial linear guide | 35mm |
| The number of the slider in the X axis | 6 pieces |
| The number of the slider in the Y axis | 4 pieces |
| The number of the slider in the Z axis | 4 pieces |
| Triaxial screw size | 40/12mm |
| Work table size | 1500x420mm |
| The maximum load capacity | 400KG |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm |
| Spacing | 90mm |
| Positioning accuracy | 0.01mm |
| Repeat positioning accuracy | 0.008mm |
| Spindle speed range | 20-8000rpm/min |
| Feed axis motor power | 1.8/1.8/2.5KW |
| Feed motor connection form | Direct Connection |
| Taper of spindle hole | BT40 |
| The spindle of output power | 5.5KW |
| Cooling box form | Independent |
| Tool Changer | Carousel tool changer |
| Tool Capacity | 12pieces |
| Dimension of machine tool | 1950/1700/2300mm |
| Weight of machine | 2250KG |
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
Our Exhibition:
FAQ:
1. Are you a manufacturer or a trader?
we are the manufacturer for CNC Vertical Milling Machines.
2. What can you buy from us? Vertical Machine Center, CNC VMC Milling Machine
3. Where is the factory located? How can I visit there?
Our factory is located in Zhangzhou City, Fujian Province, China. With very convenient transportation access.
4. What's the MOQ?
MOQ is 1 set.
5. OEM Service
We accept purchase orders with customers' brand or trade mark.
